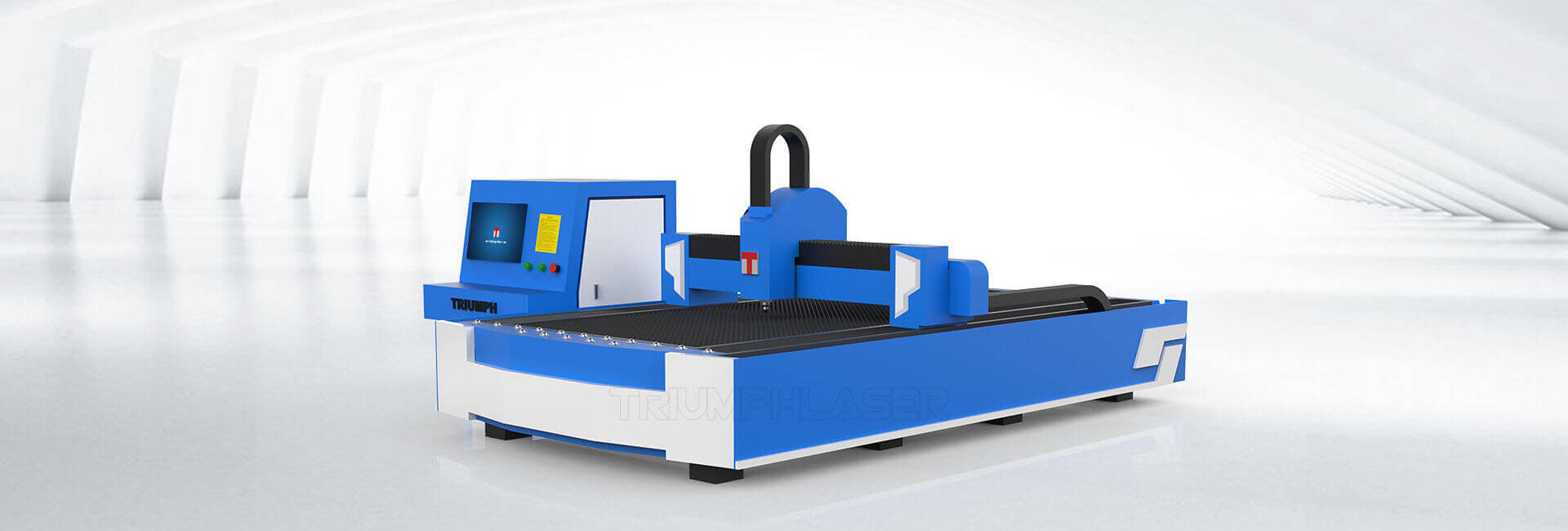

    Advertising fiber laser cutting machine B-series

ADVERTISIONG FIBER LASER CUTTING MACHINE

Fiber laser cutters can provide users with a powerful cutting capacity and efficiency for  for 1-5mm thin sheet metal.
Fiber laser cutting machine is dual-drive mobile gantry structure with linear guide and gear rack drive system. Professional laser cutting CNC system ensures high integration, precise control and stable operation.The fiber laser cutting machine adopts Germany fiber laser technology and USA original fiber laser cutting head, Triumphlaser’s fiber laser cutting machine can provide users with a powerful cutting capacity and efficiency, It is a good choice for 1-5mm thin sheet metal, carbon steel and mild steel processing.

gear rack drive system

Gear rack drive system

Equipped with grinding gear and rack, and through the precision collimator one time metering assembly. Secure high cutting speed, high precision transmission.

single table

Single table

Application of gantry structure and integrated cast cross-girder to achieve higher rigidity, stability, shock resistance.

autofocus laser cutting head

Auto-adjusting Height System

The machine is capable of automatic height adjustment to maintain constant focal length and stable cutting quality.

remot contorl

Remote control

Just like the remote control ,It is easy to operate the machine

Sawtooth platform

Large format cutting area meets the demands of various kinds of metal processing

Σ-7 servo motor

Servo motor

Adapt imported guide transmission and servo motor, high cutting accuracy

FEATURES OF FIBER LASER CUTTING MACHINE

Stable running

Adopting gantry structure with synchronous bilateral gear and rack drive, and high-strength aluminum beams enhance its stability.

High technology

Full application of laser technology, mechanical technology, numerical control technology and other advanced technology.

High efficiency

High-speed digital motion control by Germany technology system, especially for high-speed, high-precision laser cutting.

Integrated design

Fiber laser cutting machine is dual-drive mobile gantry structure with linear guide and gear rack drive system. A 10% reduction of the volume of space, easier and cheaper for transportation.

Low energy consumption

Photoelectric conversion rate is up to 25-30% which can save energy and power. Electric power consumption is only about 20%-30% of the traditional Co2 laser cutting machine.

Low maintenance cost

Fiber laser cutting machines doesn’t need reflect lens, saving much maintenance cost. The key components lifespan can reach 100,000 hours with stable performance.

INDUSTRY APPLICATION

1.Application Materials: Fiber Laser Cutting machine is suitable for metal cutting with Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc
2.Application Industries:Triumph Fiber Laser Cutting Machines are widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc.

Machine Parts

machine parts laser cut

Sheet Metal

metal sheet laser cut

Advertising Letters

Metal Crafts

bike fiber laser cutting

SAMPLE DISPLAY

fiber laser cutter sample
metal fiber laser cutting
stainless steel laser cutting sample
More material

TECHNICAL PARAMETERS

ModelTR-F1325/TR-F1530
Cutting Area1300*2500mm / 1500*3000mm
Laser Power300W/500W/1000W
laser wavelength1077nm-1083nm
Cooling TypeWater cooling
Cutting ThicknessDepending on materials
Position TypeRed Dot
Operation ModeCW
Power Tuning Range10%-100%
Operation Voltage220V
Max Modulation Freq 50KHz
Max Power Consumption2500W
