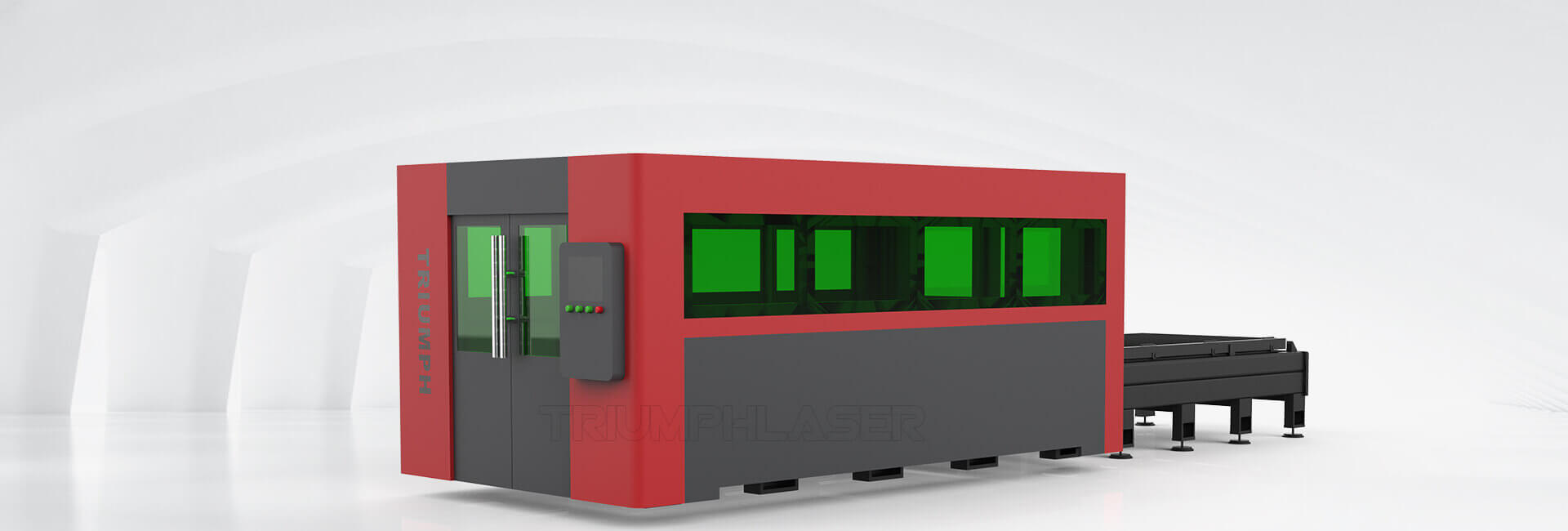

• Enclosed Sealed Fiber Laser Cutting Machine

    Encolesd fiber laser cutting machine

Enclosed Sealed Fiber Laser Cutting Machine

The fully sealed design with true laser protection glass added to make the machine safer and more reliable. The two work tables move independently and do not interfere with each other. The design of this independent moving work tables makes it easier to clean the slag.

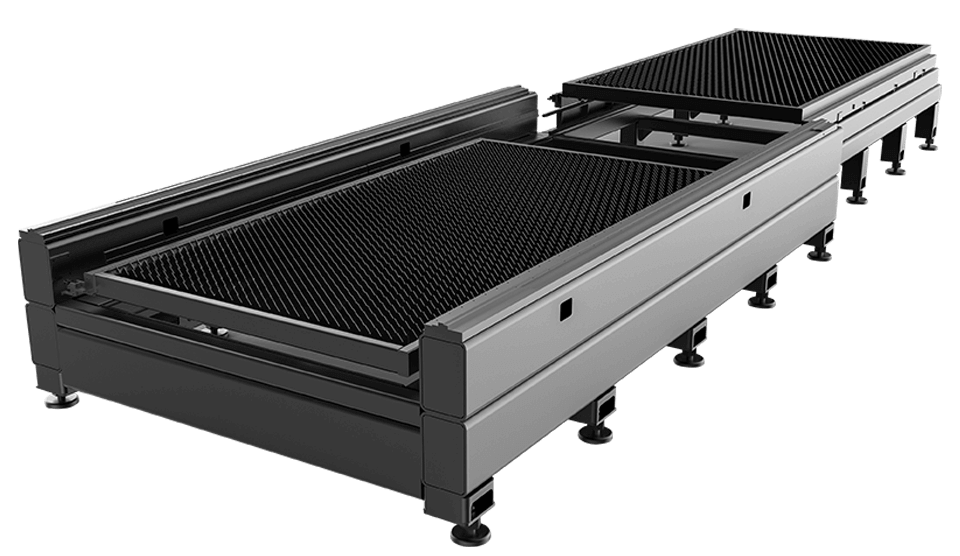

Machine Body

Equipped with a high-low exchange platform, this laser cutting machine operates more efficiency due to the short exchange period of only 15 seconds.

The metal body on this cutter has undergone a 600°C heat treatment, and is cooled inside the furnace for 24 hours. After this is complete, it is processed using a plano-milling machine and welded using carbon dioxide. This ensures it has a high strength and a 20 year service life.

enclosed machine body
Cast Aluminum Beam

Cast Aluminum Beam

Cast aluminum crossbeam 50% lighter than made by steel

Cast Aluminum Beam made by10-ton steel mould with better rigidity. And the weight is 1/2 lighter than traditional welding iron gantry.

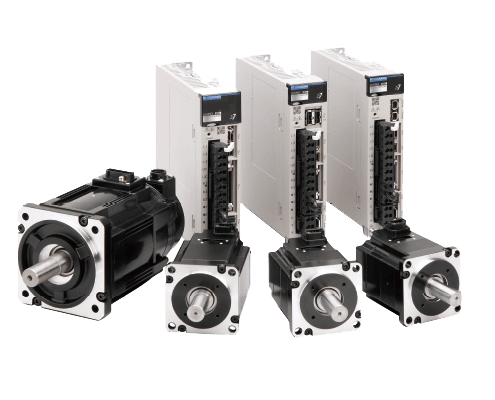

Japan Servo Motors and Drivers

The electric and drive systems provided by Japan YASKAWA offer customers a faster rotation speed and better stability.

Japan Servo Motors and Drivers

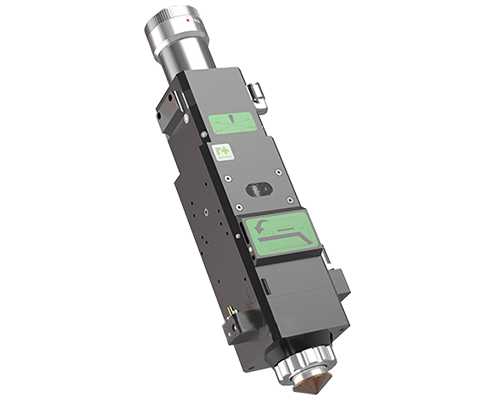

raytools laser head

Raytools Laser Head

The laser head made in Swiss is suitable for the medium and small power metal sheet fiber laser cutting machine, with a diversified interface setting so that it can be matched with all kinds of mainstream fiber lasers. The cutting head adopts the optimization of optical design, light weight, small volume, easy to use, with a height sensor can make cutting more efficient, but low price,which is preferred for cutting equipments with laser power 500w or lower.

Auto – focus:Applicable to various focal lengths, which are controlled by machine tool control system. Focal point will be automatically adjusted in cutting process to achieve the best cutting effect of different thicknesses sheets metal.

Accuracy:Increasing perforation focus length, separately setting perforation focal length and cutting focal length, enhance cutting accuracy.

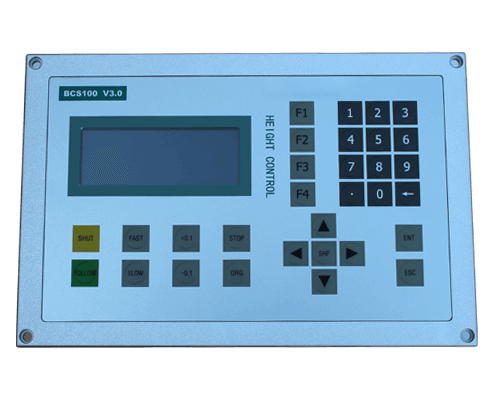

High Efficiency Operating System

The operating system can realize intelligent layout of graphics cutting and support the import of multiple graphics, optimizing cutting orders automatically, searching edges smartly and automatic positioning. Control system adopts the best logic programming and software interaction, provides stunning operation experience, effectively enhancing the utilization of sheet metal and reducing waste. Simple and fast operation system, efficient and accurate cutting instructions, effectively improve the user experience.

fiber laser cutter operating system

INDUSTRY APPLICATION

Metal processing and manufacturing industries such as sheet metal processing,electrical appliance,kitchen utensils,aerospace,machinery,elevator,car, shipping,tool processing,subway accessories,arts and crafts,decoration and advertising.

SAMPLE DISPLAY

metal sheet laser cutting
laser cutting metal materials
aluminum copper clad laminates
Carbon steel fiber laser cutting

TECHNICAL PARAMETERS

ModelTR-F1325/TR-F1530
Cutting Area1300*2500mm / 1500*3000mm
Laser Power500W-4000W
laser wavelength1077nm-1083nm
Cooling TypeWater cooling
Cutting ThicknessDepending on materials
Position TypeRed Dot
Operation ModeCW
Power Tuning Range10%-100%
Operation Voltage220V
Max Modulation Freq 50KHz
Max Power Consumption2500W
