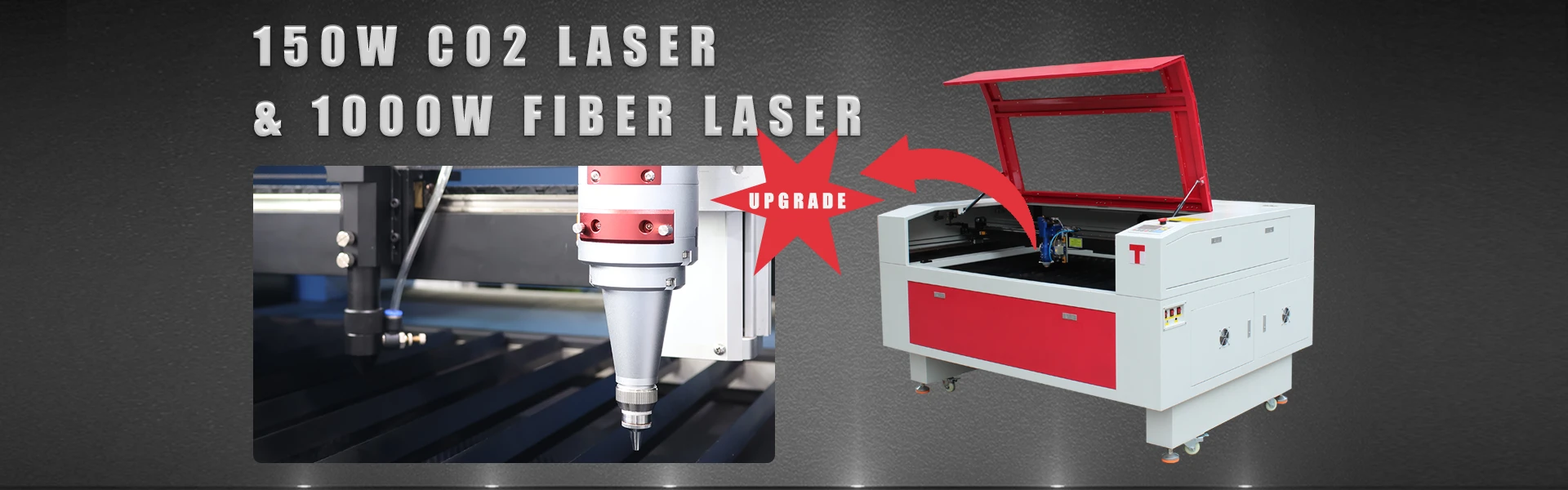

    High speed Multifunctional Metal and Non-metal laser cutting machine

    1390M metal laser cutter

METAL LASER CUTTER

Metal laser cutting machine adopts high-precision cutting head, it can cut metal and non-metal materials. It is a cost-effective various materials cutting models. Multi-function metal and non-metal mixed laser cutter has a unique metal cutting system, automatic focusing, without manual operation. High-stability mechanical structure, CNC movement smoothly, fast and high precision. Super strong beam, narrow slit, smooth edge, cutting strength and so on.That may greatly enhance working efficiency.

user manual EzCad Manualcatalogue

FEATURES OF METAL LASER CUTTER

autofocus laser cutting head

Autofocus Laser Head

The cutting head laser cutting machine servo system, automatic focusing, fine metal non-metal materials cutting Automatic constant length cutting, effectively ensure cutting quality
metal laser cutting samples

Metal Non-metal Mixed Cut

Mix cutting ,widely using on AD materials ,When the cutting machine cuts the metal, it is necessary to add oxygen as auxiliary gas. When cutting nonmetal, blow the air just like an ordinary machine.

Linear Guides

Linear Guiding System

Linear guide, high positioning accuracy, dynamic friction is similar to static friction, Can maintain the accuracy for a long time, suitable for high-speed cutting.

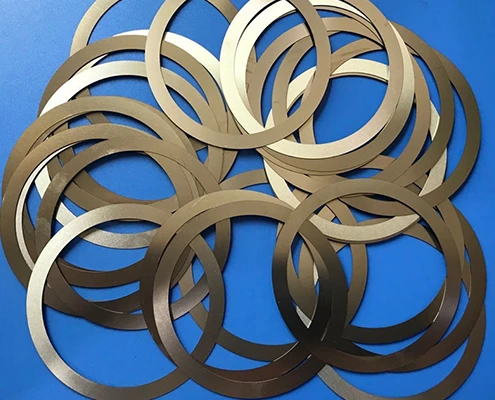

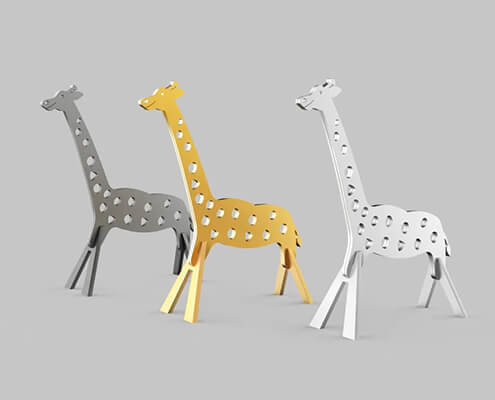

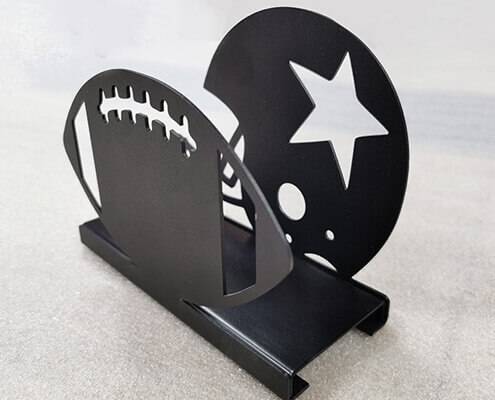

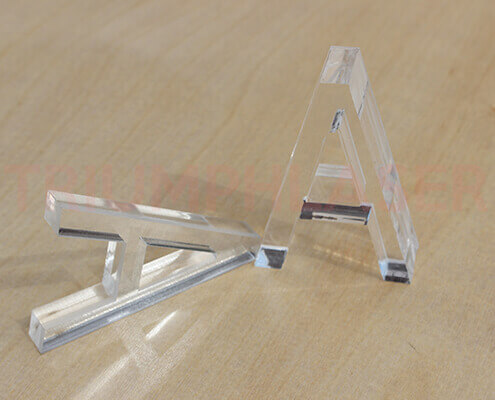

SAMPLE DISPLAY

HOW IT WORKS

We have some laser marking videos to help you understand how it works

STANDARD ACCESSORIES

Machine

1390M laser cutting machine

Water chiller

cw5000 water chiller

Exhaust fan

Auto exhausting system

Air pump

triumphlaser Automatic blowing system

TECHNICAL PARAMETERS

ModelTR-1390M/TR-1325M
Laser Power130W/150W/300W
Working Area1300X900mm(51.18″X35.43″)/1300X2500mm(51.18″X98.43″)
Cooling TypeWater cooling
Laser Output Control0-100% Set by software
Display PanelLCD panel showing current file,total working time,laser power,speed etc
Power Supply220V±10% 50HZ or 110V±10% 60HZ
Compatible softwareCoreldraw,Autocad,Illustrator
Color Separation Yes
Operating ModesOptimized raster, vector, and combined mode
Computer InterfaceEthernet and USB Connection
Compatible Operating SystemsWindows XP/2000/Vista/7/8/10
Resolution(DPI)User controlled from 100 to 500DPI
Color SeparationYes
Machine partsWater chiller, Air pump,Smoke pipe, Exhaust fan,130W(Standard configuration)

Frequently Asked Questions

What is the laser power?

130W(standard),Can be upgraded 150W/180W/300W

How many thickness stainless steel can be cut?

Max 2mm

Can i send a DXF file to you and then you cut for me?

Yes, we welcome you to send us a file and we will make a sample for you to have a look.

Is it possible to start the software without laser machine?

Yes, you can start the software without laser machine.
