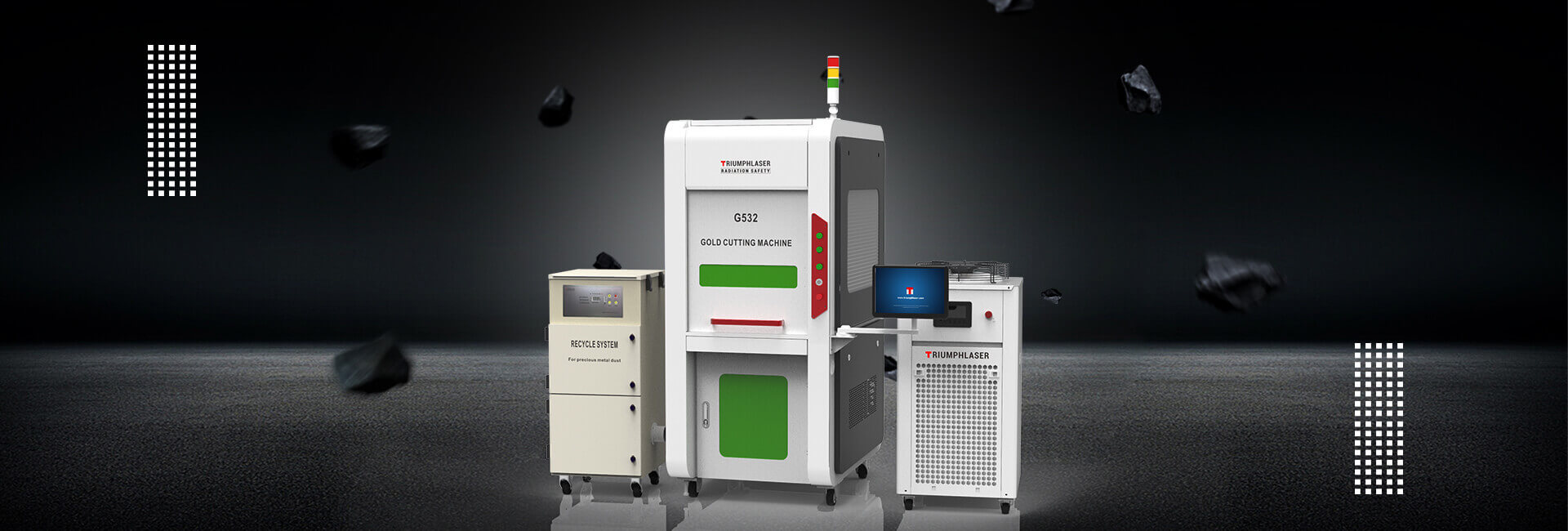

Gold Silver Laser Cutting Machine for Jewelry

Gold Silver Laser Cutting Machine for Jewelry

This laser cutting machine can as gold cutting, jewelry cutting, brass cutting, and stainless steel cutting. A precision cutting machine with a cutting accuracy of less than 0.02mm.The price of gold laser cutting machines is very popular among jewelers.
Our gold laser cutting machine and silver laser cutting machine takes the most stringent safety precautions (the machine is completely enclosed), clean cutting, accuracy, and precision! That’s what you get with laser cutting and engraving machines.

Application of Gold Laser Cutting Machine

With the jewelry laser cutting system, you can:(Necklace) Interlocking Monograms；(Necklace) Circle Monograms；(Necklace) Name Necklaces；(Earrings) Complex Custom Designs；(Necklace) Pendants & Charms；(Necklace) Intricate Patterns；(Pendants and bracelets) Custom One-Of-A-Kind Parts

Silver jewelry fiber laser cutting machine

Eardrop gold jewelry Laser cutting sample

Technical Parameters

Model	TR-G532
Working Area	240mm×390mm(9.45″×15.35″)
Laser Power	500W-1500W
Max.Cutting Speed	40m/min
Max. accelerated	1G
X/Y-axis positioning accuracy	0.02mm
X/Y-axis repositioning accuracy	0.02mm
Power supply	220V / 50Hz
Transmission	Screw drive
Weight	330kg(machine)+45kg(water chiller)+74kg(recycle system)
Machine Size	82×110×172cm(32.3″×43.3″×67.7″)

Features of Gold Laser Cutting Machine

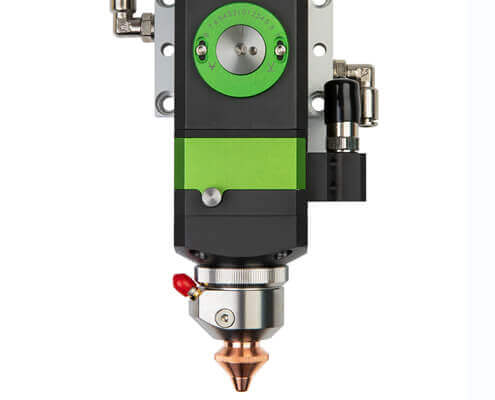

Raytools Laser Head

The cutting head adopts the optimization of optical design, light weight, small volume, easy to use, with a height sensor can make cutting more efficient, which is preferred for cutting equipments with fiber laser cutting machine.

Ball screw transmission

High transmission efficiency,high dynamic precision,smooth movement,no creeping phenomenon,no empty travel in reverse,reversible,long service life

Server System

The fiber laser machine adopts the imported servo system from japan including servo motor and servo driver,The electric and drive systems provided by Japan Fuji Electric offer customers a faster rotation speed and better stability.

Unique Pulley Design

The machine is very easy to move without any moving tools

Remote control

Just like the remote control ,It is easy to operate the machine

Safety Cover

Our machine takes the most stringent safety precautions (the machine is completely enclosed)
